XOU24BCGOA | $1,699XOU24ADASG | $199

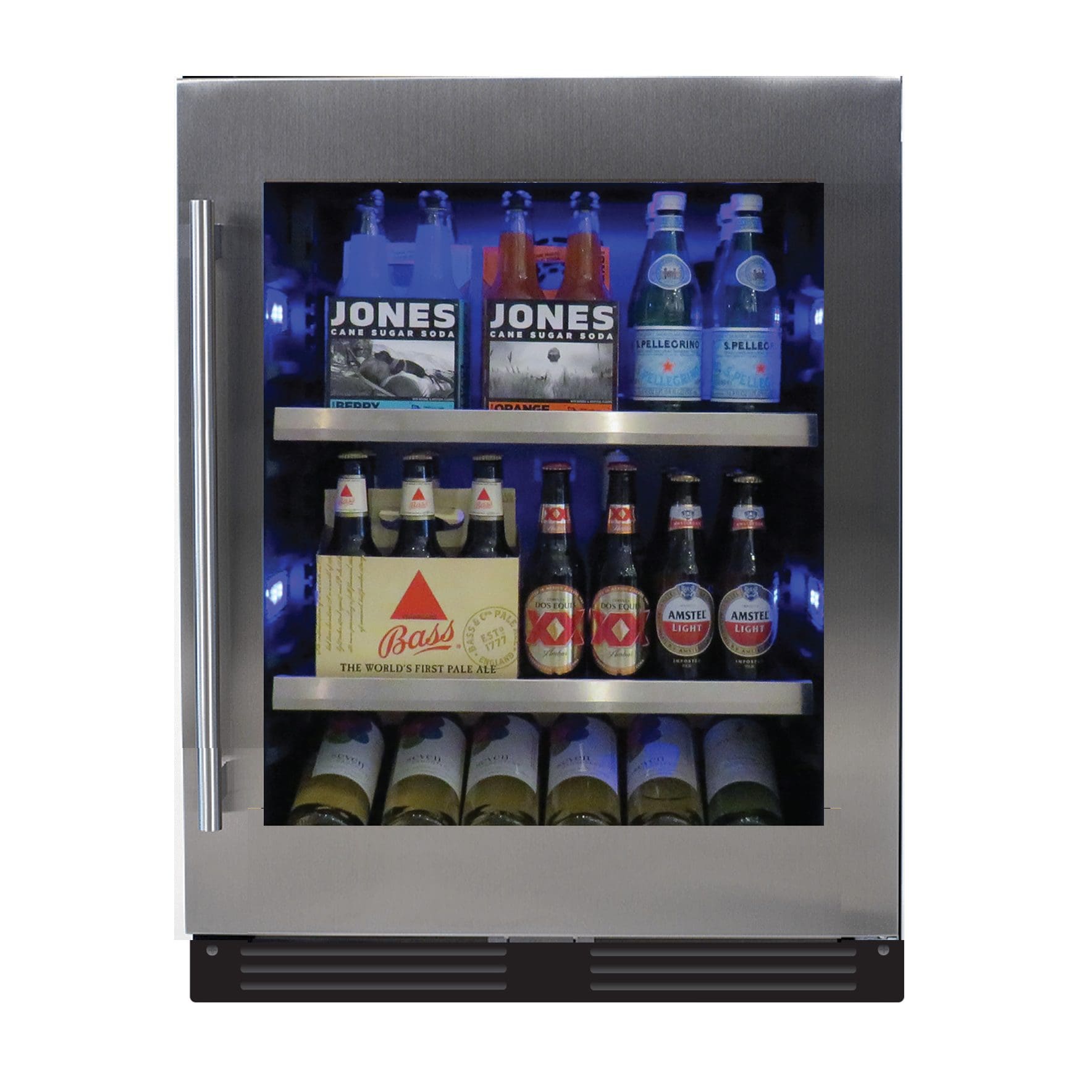

24" Designer Undercounter ADA Height Beverage Center with Optional Stainless Steel Door Kit

ACCOMMODATES:
ADA HEIGHT | US STANDARD HEIGHT | EUROPEAN

Finally, a Beverage Center that fits virtually any 24" wide location. Whether ADA height or US Standard – American or European style cabinetry, XO has just the right unit. Frame the door to expose the Low-E glass window (optional Stainless Steel Door Kit available) And, your XO Beverage Center comes with clear glass shelves that fully extend while fully loaded enabling you to see everything.

Store up to 118 (12oz) cans – Ready to serve at 34° to 50° F and still find just what you are looking for.

STANDOUT FEATURES

  • Fits US / European / ADA
  • Articulating Hinge
  • Handleless
  • Adapts for European Toe Kicks/ Plinth
  • Optional SS Panel for ADA Installations
  • Shelves extend fully while loaded
  • Tri-color LED interior lighting
  • Holds up to 118 (12oz) cans
  • Shelves adjust to 12 different positions
  • Intuitive digital temperature control from 34′ to 50′ F
  • Display as Framed Glass
  • Flush installation design
  • Energy-efficient Low-E Glass
  • X-Active circulation removes odors and circulates air
  • ENERGY STAR Certified Residential

Specifications & Files

Energy Star Certified

Fits US | European | ADA Cabinets

Cabinet Compatibility
1
US Standard Use the Optional Trim Strip (included) with the leveling legs retracted to fit US Standard height counters.
2
European Standard Extend the sturdy Leveling Legs to accommodate a custom 6” (150mm) Plinth.
3
ADA Height With the leveling legs retracted, your XO GOA fits perfectly below ADA height counters.

KEY FEATURES

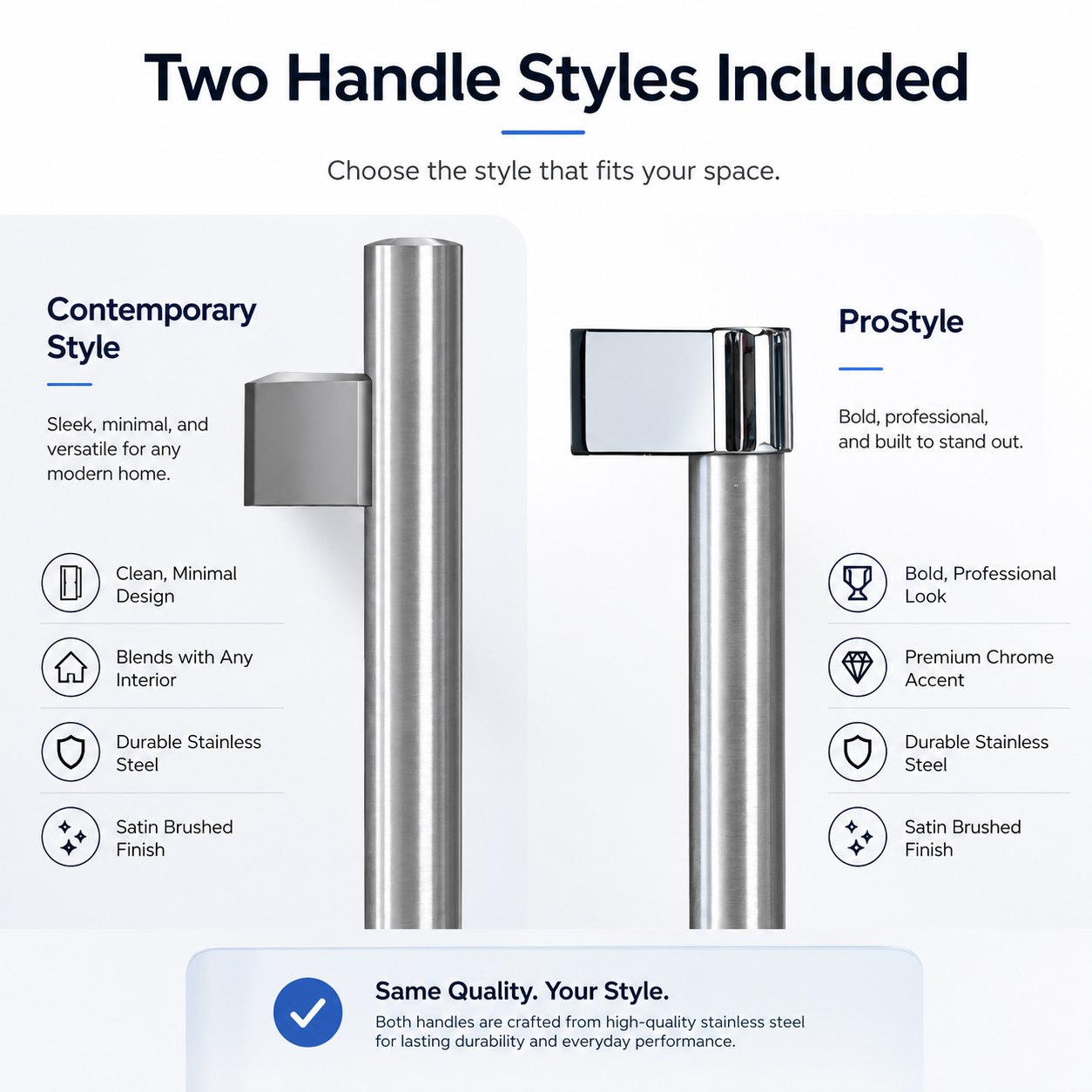

OPTIONAL SS ADA DOOR PANEL - If your ADA install calls for a stainless finish use the optional stainless steel overlay panel which includes two different style handles. Product ID: XOU24ADASG

ARTICULATING HINGE

The articulated hinges ensure a seamless integration with your cabinets and allow use of panels longer than 30”.

ADAPTS FOR EUROPEAN PLINTH/TOE KICKS

The sturdy leveling legs and foot sliders enable you to raise the unit for Plinth/Toe Kicks up to 6” (150mm).

EASY TO STORE | EASY TO FIND

Clear glass shelves extend fully while fully loaded allowing you to see everything at a glance.

34° AT YOUR FINGERTIPS

with easily adjusted electronic controls you can store your favorite beverages down to a frosty 34° .

ELEGANT TRI-COLOR LIGHTING

Cool running LEDS are change with the push of a button from theater white to midnight blue or honey amber.

UNIFORM TEMPERATURE

activated carbon filters and whisper quiet fans ensure the positive circulation of air for uniform temperatures.

LOW-E GLASS WITH UV BLOCKER

On all glass door units, double pane, low-e glass coated to block harmful ultraviolet light is standard for energy efficient operation and protection from damaging light.

REMOVABLE WINE DISPLAY RACK

the 15" beverage centers include a 3 bottle display, while the 24" beverage centers include a 6 bottle display which are easily removed for additional storage or for use as a serving piece separately

Specifications & Files

Appearance

  • Finish: Panel Ready & Glass
  • Control Type: Intuitive Touch Digital Controls
  • Toe Kick Color: Black
  • Interior Lighting: Tri-Color LED Interior Illumination
  • Shelf Material: Glass
  • Controls: Electronic Touch
  • Control Lighting: Backlit LCD
  • Filter Type: Activated carbon air filter
  • Light Colors: Midnight Blue, Theater White, Honey Amber
  • Light Type: Tri-Color LED Interior Illumination
  • Lighting Features: Three lighting modes
  • Door Features: Panel Ready - UV Blocking Low-E Glass
  • Door Swing: Reversible
  • Interior Finish: Molded ABS
  • Number of Shelves: 2
  • Number of Temperature Zones: 1
  • Open Door Alarm: Yes
  • Sabbath Mode: Yes

Capacity

  • Can Storage Capacity: 118 (12oz)
  • Cubic Foot Capacity: 3.85 cu ft
  • Storage Features: 12 Position Full Extension, Fully Loaded

Performance Specifications

  • Sound Level: 37 dBA
  • Ambient Temperature: 60 to 90 degrees F
  • Maximum Temperature Zone 1: 50 degrees F
  • Minimum Temperature Zone 1: 34 degrees F

Weights & Dimensions

  • Product Weight: 125
  • Product Dimesions (DxWxH): 21 5/8" x 23 7/8" x 32 1/2 to 34 1/8"
  • Height: 32 1/2 to 34 1/8
  • Width: 23 7/16"
  • Depth: 21 5/8"
  • Depth Excluding Handles: 22 7/16" includes 3/4" panel
  • Depth Less Door: 19 15/16"
  • Depth With Door Open 90 Degrees: 44 11/16"
  • Height to Top of Door Hinge: 32 1/2 to 34 1/8

Installation

  • Install Type: Fully Integrated Undercounter
  • Location: Indoor
  • Vent Location: Bottom Front
  • Cut-out Depth: 24"
  • Cut-Out Height: 32 1/2" to 34 1/4"
  • Cut-Out Width: 24"
  • Cooling Unit Type: Air Cooled Compressor
  • Refrigerant: R600a
  • Defrost Type: Automatic Defrost
  • Power Cord Included: 6' with Flat Plug
  • Required Plug Type: 5-15P Plug Type
  • Leveling Legs: Included

Power Ratings

  • Amperage: 1.2 amps
  • Electrical: 115V-60Hz-1.2 Amps
  • Frequency (hz): 60 Hz
  • Voltage: 115V
  • Wattage: 138 watts

Shipping

  • Freight Class: 92.5
  • Shipping Weight: 125
  • Carton Height: 37"
  • Carton Width: 27"
  • Carton Depth: 29"
  • Shipping Method: LTL
