XOP36SC | $749
Undercabinet Hood
The XOP Pyramid creates a striking architectural impression with bold angles and smoothly finished edges. Don’t let its good looks fool you; it’s packed with power to handle even the most skilled cooking tasks. Great design allows venting from the rear, top or recirculating.
STANDOUT FEATURES
- Electronic 3 Speed Control + Power Boost
- CCC Code Compliance Control – 395 or 600 CFM*
- High Efficiency 3000K LED Lights (x2)
- High Velocity Blower optimally removes Smoke, Grease and Odors
- Dishwasher Safe Aluminum Mesh Filter
- 6" Top or Rear Duct or Recirculating (Kit Sold Separately)
- 5 Minute Delay Shutoff Timer
- Made In Italy
*NOTE: When CCC™ is enabled the number of fan speeds will be reduced to maximum 3 speeds
Specifications & Files
Appearance
- Finish: Stainless
- Control Type: Backlit LED
- Cooktop Lights: Twin LED Lights
- Vent Material: Metal
- Controls: Code Compliance Electronic Controls
- Control Lighting: Blue Backlit
- Filter Type: Dishwasher Safe Mesh Filters
- Light Colors: White
- Light Type: Twin LED Lights
- Lighting Features: 3000K LED
- Number of Light Bulbs: 2
- Number of Fan Speeds: 4
Performance Specifications
- Fan Speeds: 160, 395, 600
- Sound Level: 1.0-6.5 Sones
- Maximum Airflow Capacity: 600/395
- Minimum Airflow Capacity: 160
- Sones Per Speed: 1, 2.5, 4, 6.5

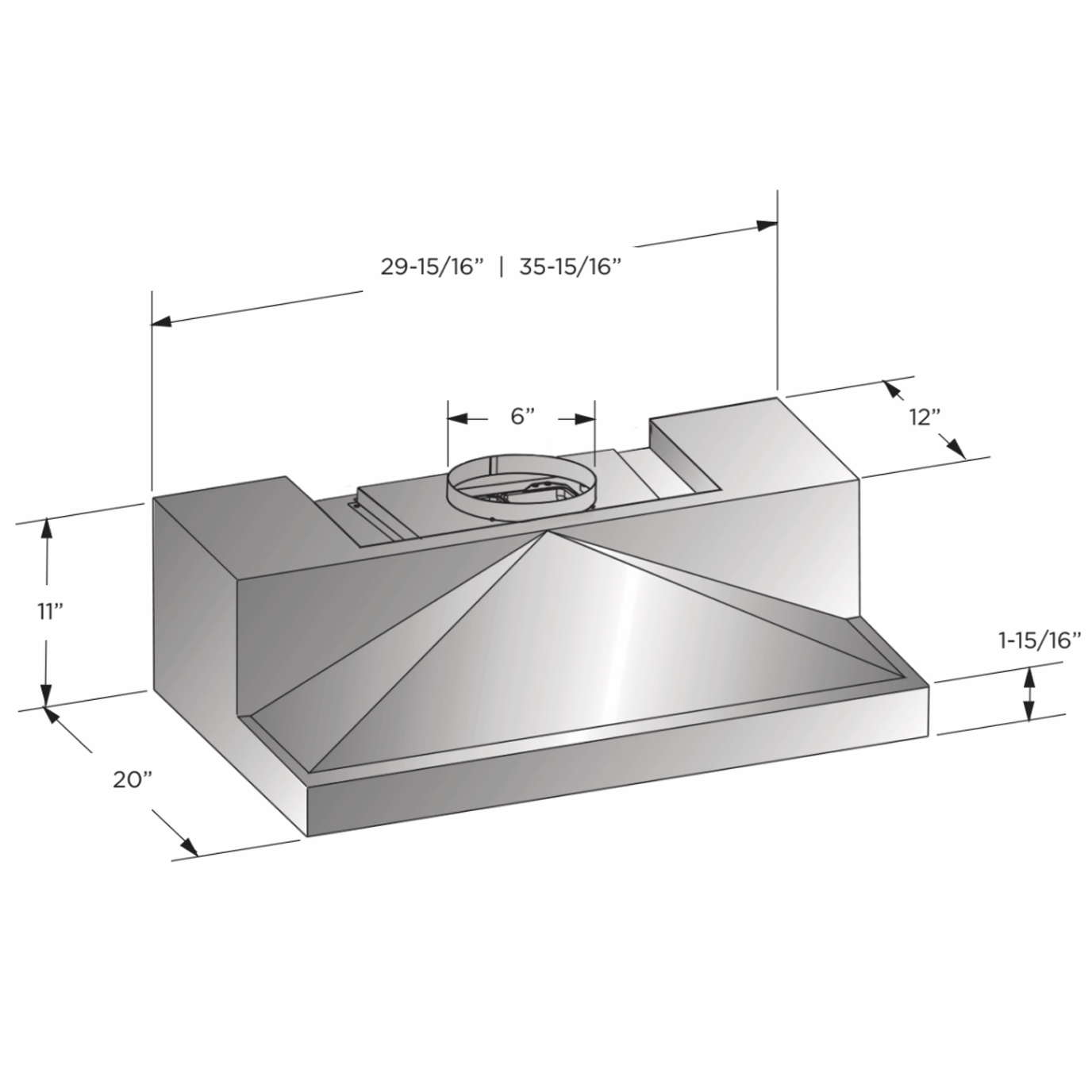

Weights & Dimensions
- Product Weight: 33
- Product Dimesions (DxWxH): 20" x 36" x 11"
- Height: 11"
- Width: 36"
- Depth: 20"
Installation
- Install Type: Undercabinet
- Location: Indoor
- Duct Size: 6" Dia.
- Duct Type: Ducted or Convertible
- Mounting Height Above Cooktop: 27" - 32"
- Vent Location: Top or Rear
Shipping
- Freight Class: 85
- Shipping Weight: 48.18
- Carton Height: 18"
- Carton Width: 40"
- Carton Depth: 24"
- Shipping Method: LTL
