XOI28SC | $849

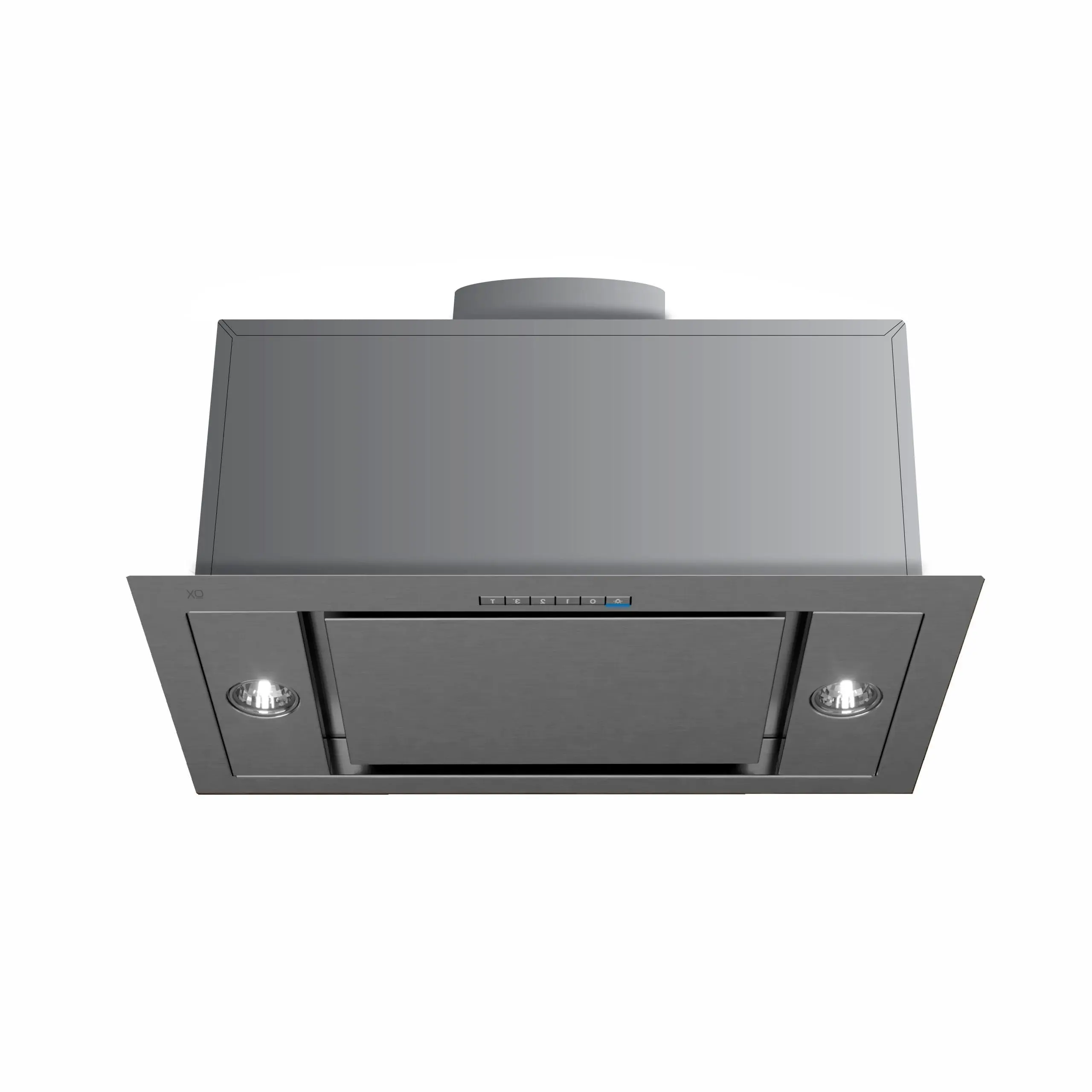

XOI Perimeter Aspiration Insert
The center panel of the XOI22/28S provides more than a sleek European appearance, tangential blower and integral sound reduction design minimize background noise.
STANDOUT FEATURES
- Electronic 3 Speed Control + Power Boost
- CCC Code Compliance Control – 395 or 600 CFM*
- Optional ADA Compliant Remote Control
- High Efficiency 3000k LED lights (x2)
- Perimeter Aspiration / Quieter / More Powerful
- Dishwasher Safe Aluminum Mesh Filters
- 5 Minute Delay Shutoff Timer
- 6" Vertical Duct or Recirculating (Kit Sold Separately)
- (Filtered, recirculated air must be returned to the living space)
- Made In Italy
*NOTE: When CCC™ is enabled the number of fan speeds will be reduced to maximum 3 speeds
Specifications & Files
Appearance
- Finish: Stainless
- Control Type: Backlit LED
- Cooktop Lights: Twin LED Lights
- Vent Material: Metal
- Controls: Code Compliance Electronic Controls
- Control Lighting: Blue Backlit
- Filter Type: Dishwasher Safe Mesh Filters
- Light Colors: White
- Light Type: Twin LED Lights
- Lighting Features: 3 Level Lighting
- Number of Light Bulbs: 2
- Number of Fan Speeds: 4
Performance Specifications
- Fan Speeds: 160, 395, 600
- Sound Level: 1.0-6.5 Sones
- Maximum Airflow Capacity: 600/395
- Minimum Airflow Capacity: 160
- Sones Per Speed: 1, 2.5, 4, 6.5
Weights & Dimensions
- Product Weight: 22
- Height: 12 1/16"
- Width: 28 5/16"
- Depth: 11 1/8"
Installation
- Install Type: Insert
- Location: Indoor
- Duct Size: 6" Dia.
- Duct Type: Ducted or Convertible
- Mounting Height Above Cooktop: 27" - 32"
- Vent Location: Top
- Cut-out Depth: 10 3/8"
- Cut-Out Height: 12 1/4"
- Cut-Out Width: 26 3/4"
Shipping
- Freight Class: 85
- Shipping Weight: 25.3
- Carton Height: 12"
- Carton Width: 31"
- Carton Depth: 15"
- Shipping Method: LTL
Discover the ultimate in kitchen ventilation with XO Range Hoods, where cutting-edge technology meets elegant design.
Our range hoods are meticulously engineered to provide powerful performance, ensuring your kitchen remains fresh and free of cooking odors and smoke.
