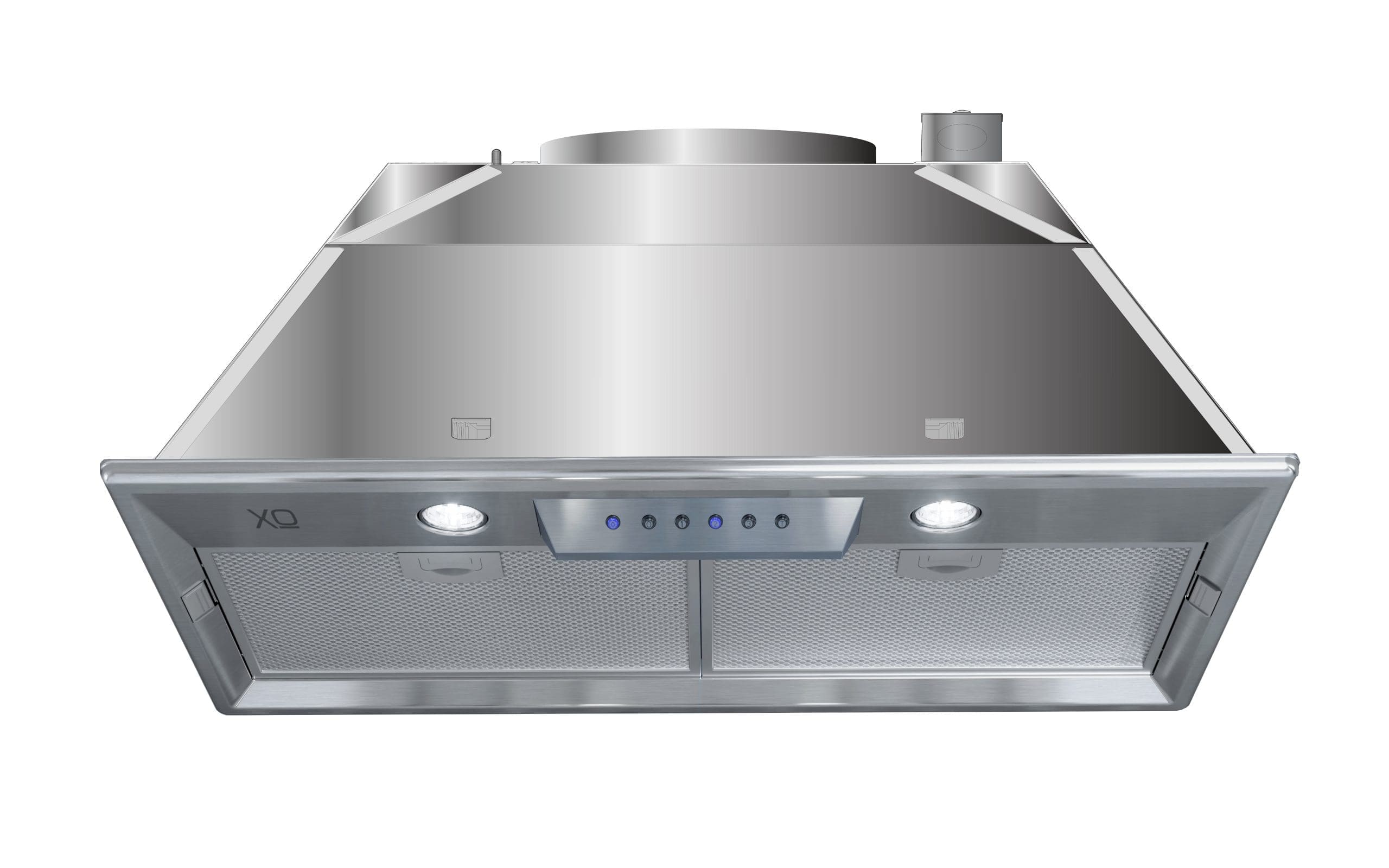

XOI27SC | $599
XOI Classic Insert
The XOI27 inserts are integrated blowers that allow you to match your custom hood to your kitchen. This simple and affordable design is easy to install. Designed and crafted in Italy for the ultimate in fit and finish. At XO we believe that good design is something everyone can afford.
STANDOUT FEATURES
- Electronic 3 Speed Control + Power Boost
- CCC Code Compliance Control – 395 or 600 CFM*
- High Efficiency 3000k LED lights (x2)
- Compact design makes installation a breeze
- Dishwasher Safe Aluminum Mesh Filters
- 5 Minute Delay Shutoff Timer
- 6" Vertical Duct or Recirculating (Kit Sold Separately)
- (Filtered, recirculated air must be returned to the living space)
- Made In Italy
*NOTE: When CCC™ is enabled the number of fan speeds will be reduced to maximum 3 speeds
Specifications & Files
Appearance
- Finish: Stainless
- Control Type: Backlit LED
- Cooktop Lights: Twin LED Lights
- Vent Material: Metal
- Controls: Code Compliance Electronic Controls
- Control Lighting: Blue Backlit
- Filter Type: Dishwasher Safe Mesh Filters
- Light Colors: White
- Light Type: Twin LED Lights
- Lighting Features: 3000K LED
- Number of Light Bulbs: 2
- Number of Fan Speeds: 4
Performance Specifications
- Fan Speeds: 160, 395, 600
- Sound Level: 1.0-6.5 Sones
- Maximum Airflow Capacity: 600/395
- Minimum Airflow Capacity: 160
- Sones Per Speed: 1, 2.5, 4, 6.5
Weights & Dimensions
- Product Weight: 16.72
- Product Dimesions (DxWxH): 11" x 27 3/4" x 10"
- Height: 10"
- Width: 27 3/4"
- Depth: 11"
Installation
- Install Type: Insert
- Location: Indoor
- Duct Size: 6" Dia.
- Duct Type: Ducted or Convertible
- Mounting Height Above Cooktop: 27" - 32"
- Vent Location: Top
- Cut-out Depth: 10 1/4"
- Cut-Out Height: 10 15/16"
- Cut-Out Width: 26 5/8"
Shipping
- Freight Class: 85
- Shipping Weight: 18.7
- Carton Height: 12"
- Carton Width: 36"
- Carton Depth: 18"
- Shipping Method: LTL
