24" Designer Undercounter ADA Height Beverage CenterWith Optional Stainless Steel Door Kit
Total Package Price: $2,248
Included items
XOU24BCGOA $1,999
XOU24ADASG $249
Add beverage storage to a 24-inch space with this XO cooler designed for ADA-height, US-standard and European cabinetry. It holds up to 118 twelve-ounce cans at 34°F to 50°F. Full-extension glass shelves make drinks easy to reach, and the panel-ready glass door supports a coordinated installation.
Commercial & residential useFeatures at a Glance

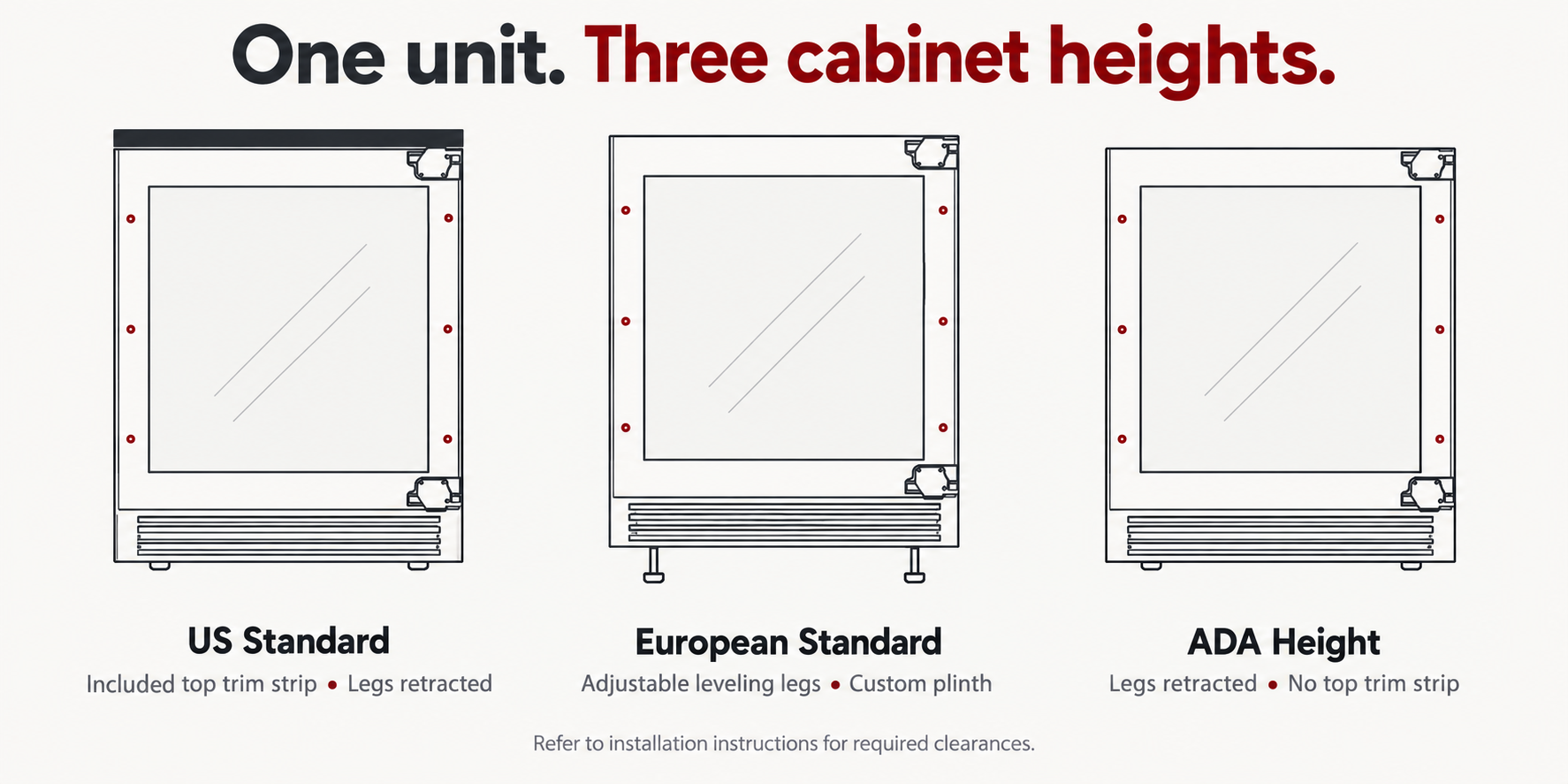

- Fits US / European / ADA
- Articulating Hinge
- Handleless
- Adapts for European Toe Kicks/ Plinth
- Optional SS Panel for ADA Installations
- Shelves extend fully while loaded
- Tri-color LED interior lighting
- Holds up to 118 (12oz) cans
- Shelves adjust to 12 different positions
- Intuitive digital temperature control from 34′ to 50′ F
- Display as Framed Glass
- Flush installation design
- Energy-efficient Low-E Glass
- X-Active circulation removes odors and circulates air
- ENERGY STAR Certified Residential
A Closer Look
Stainless Steel Door Kit
The XOU24BCGOASS package pairs the panel-ready GOA beverage center with the XOU24ADASG stainless steel door kit.

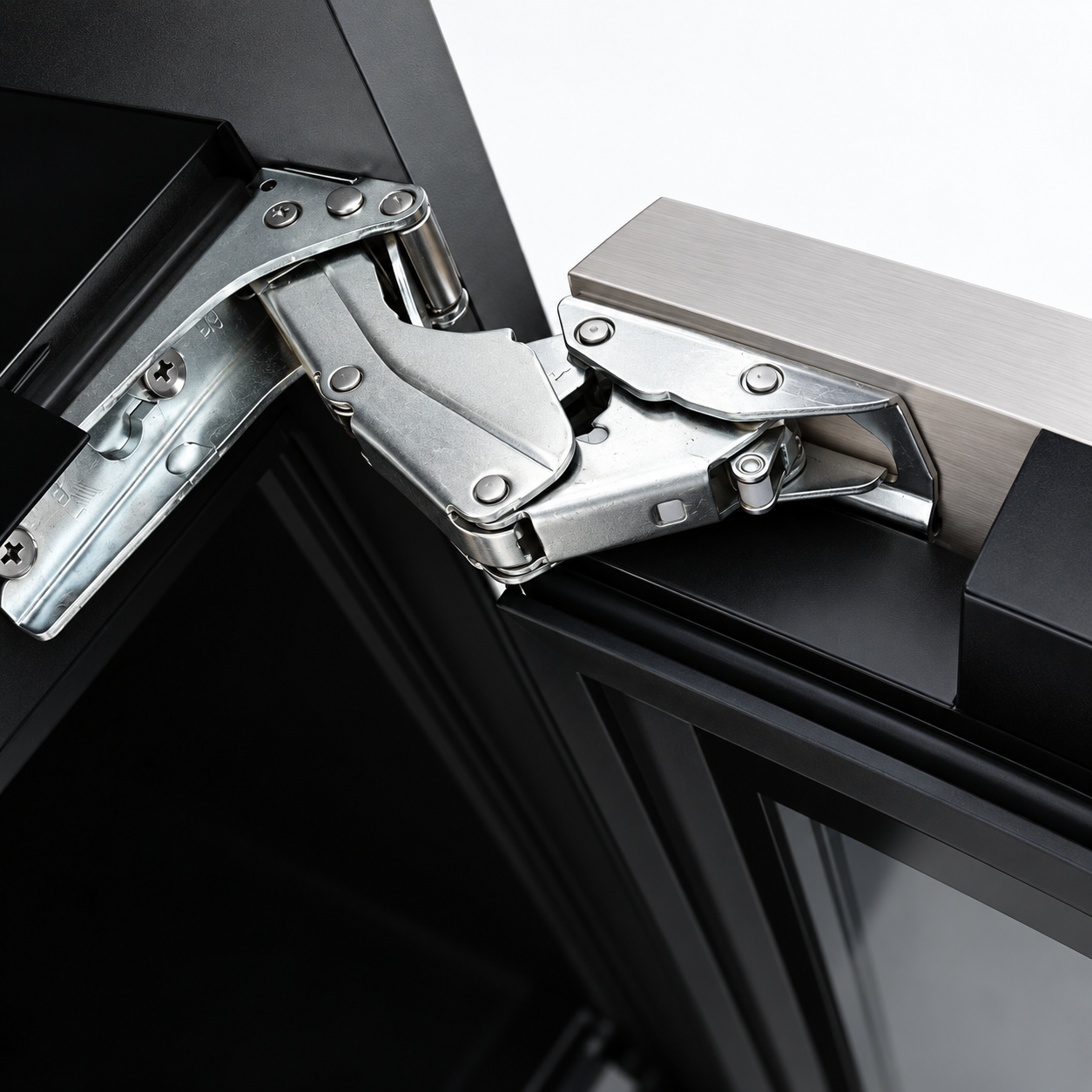

Articulating Hinge
Articulating hinges integrate the door with surrounding cabinetry and support panels longer than 30 inches.
Recessed Custom Toe Kick
Integrate the unit with a recessed cabinetry toe kick. Adjustable leveling legs support plinth heights up to 6 inches (150 mm).

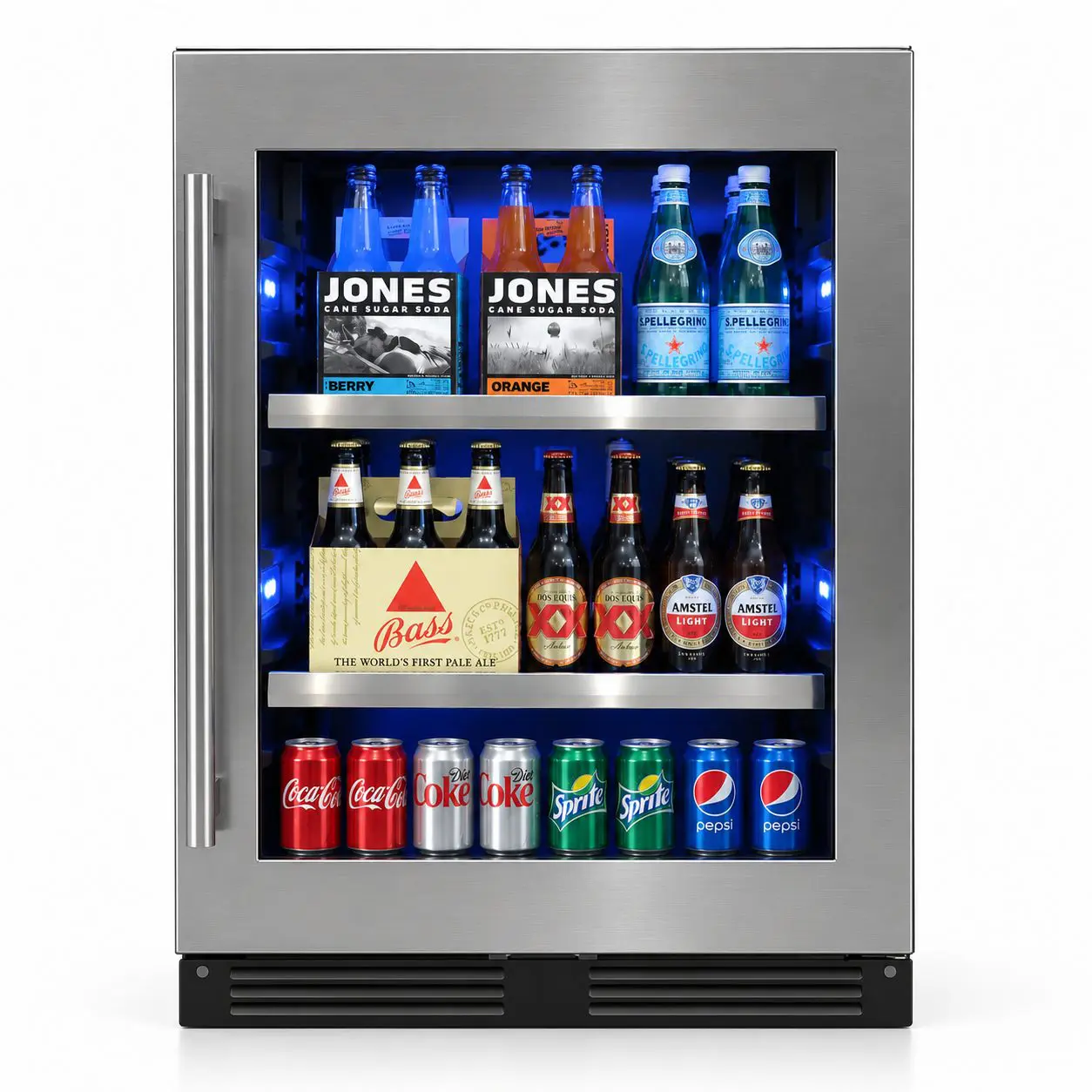

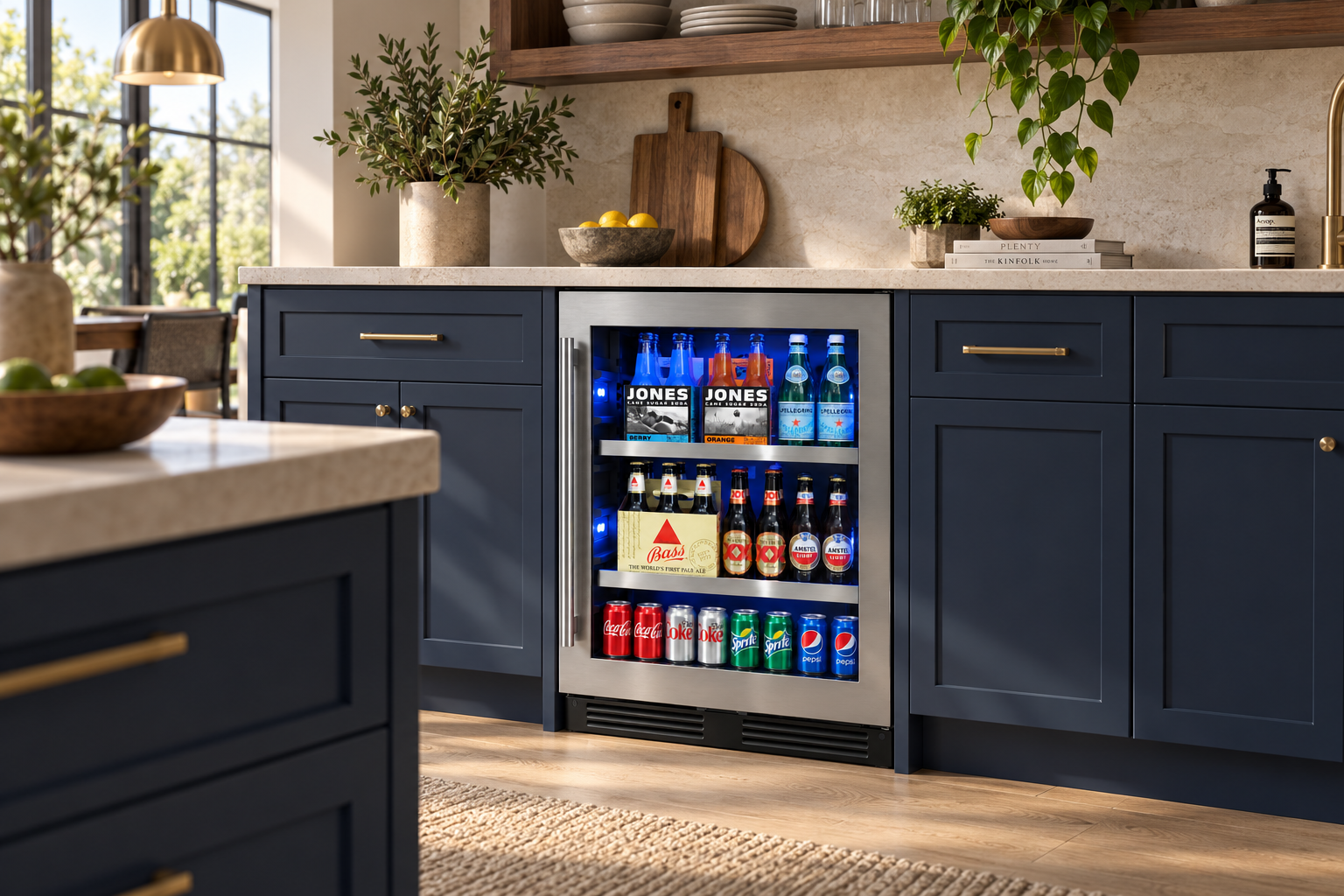

Optional Stainless Steel Door Kit
The XOU24ADASG overlay door kit includes two handle styles for a stainless steel installation.

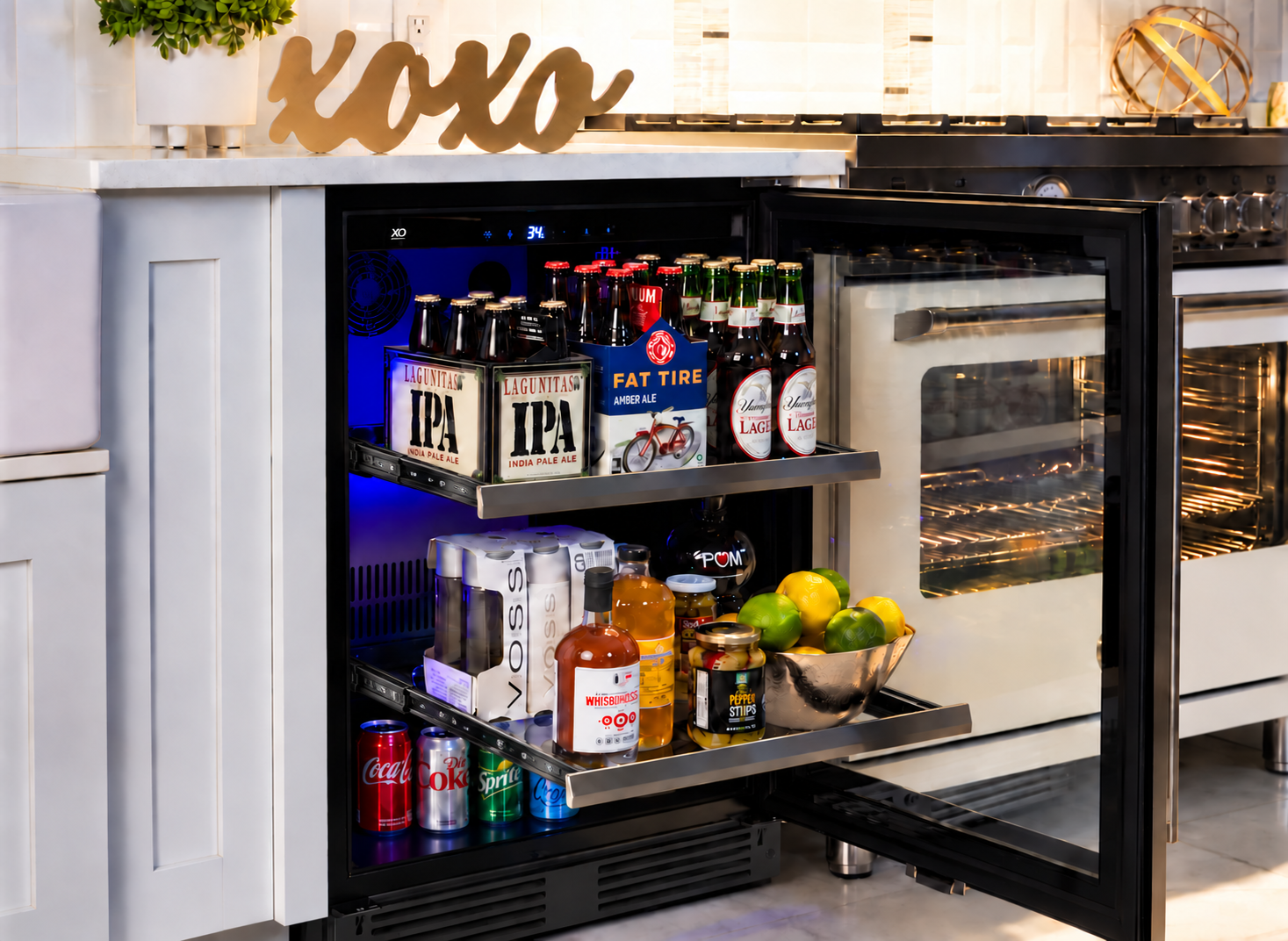

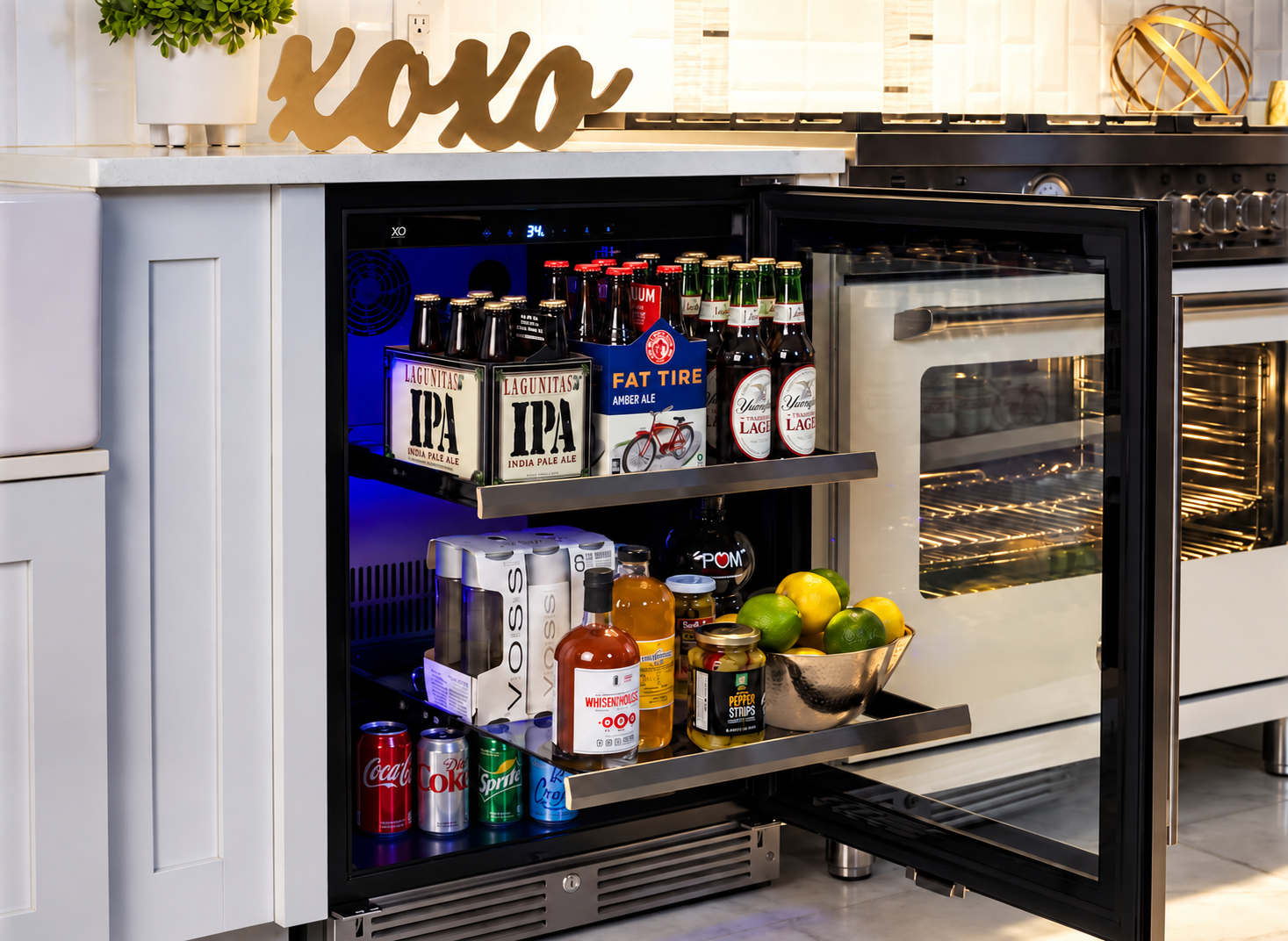

Full-extension Glass Shelves
Clear glass shelves extend fully while loaded, making beverages easy to see and reach.

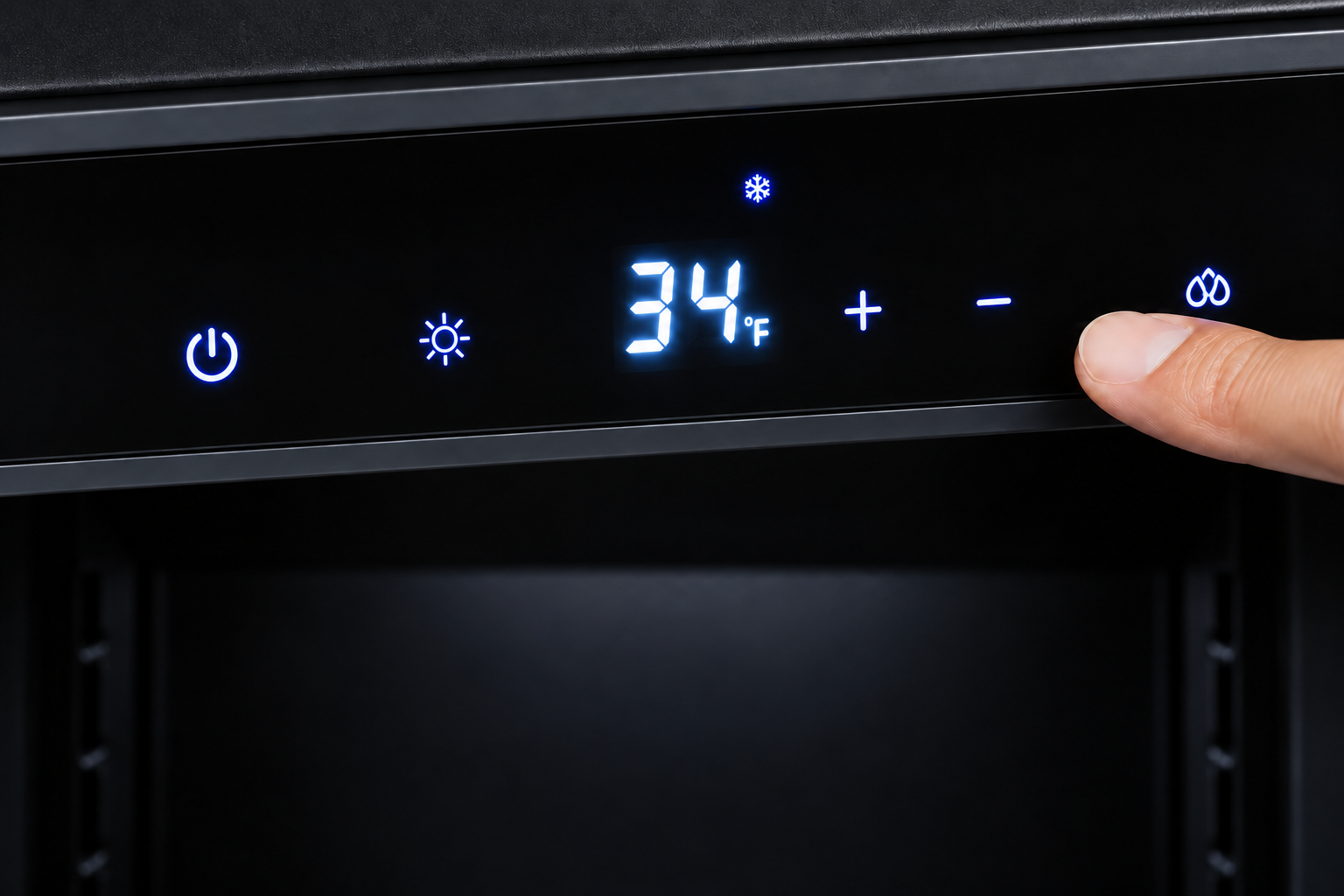

34°f At Your Fingertips
Easily adjust the electronic controls to store beverages from 34°F to 50°F.

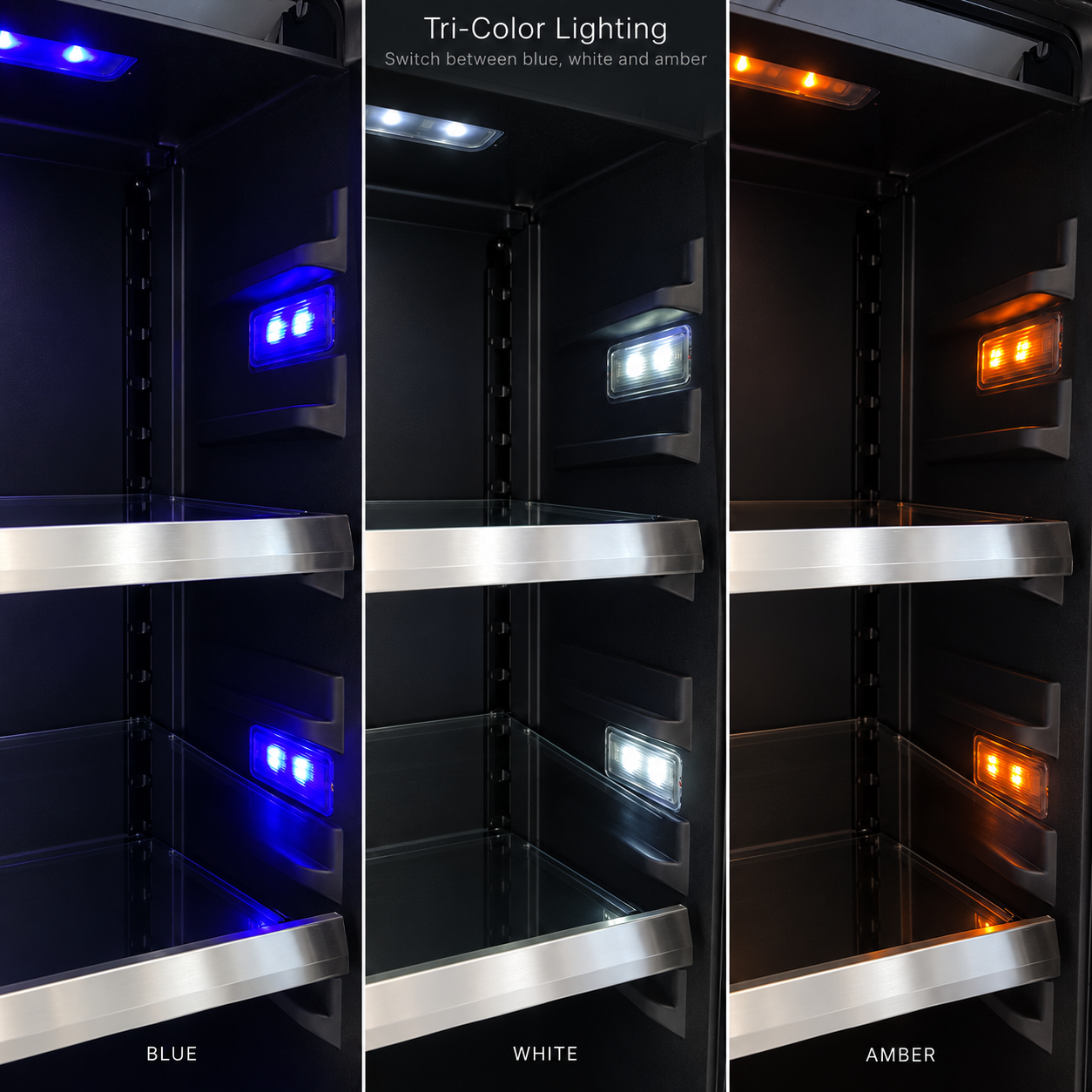

Tri-color Lighting
Switch between white, blue and amber LED lighting with the push of a button.
Low-e Glass With Uv Blocker
Double-pane, low-E glass helps improve energy efficiency and blocks harmful ultraviolet light.

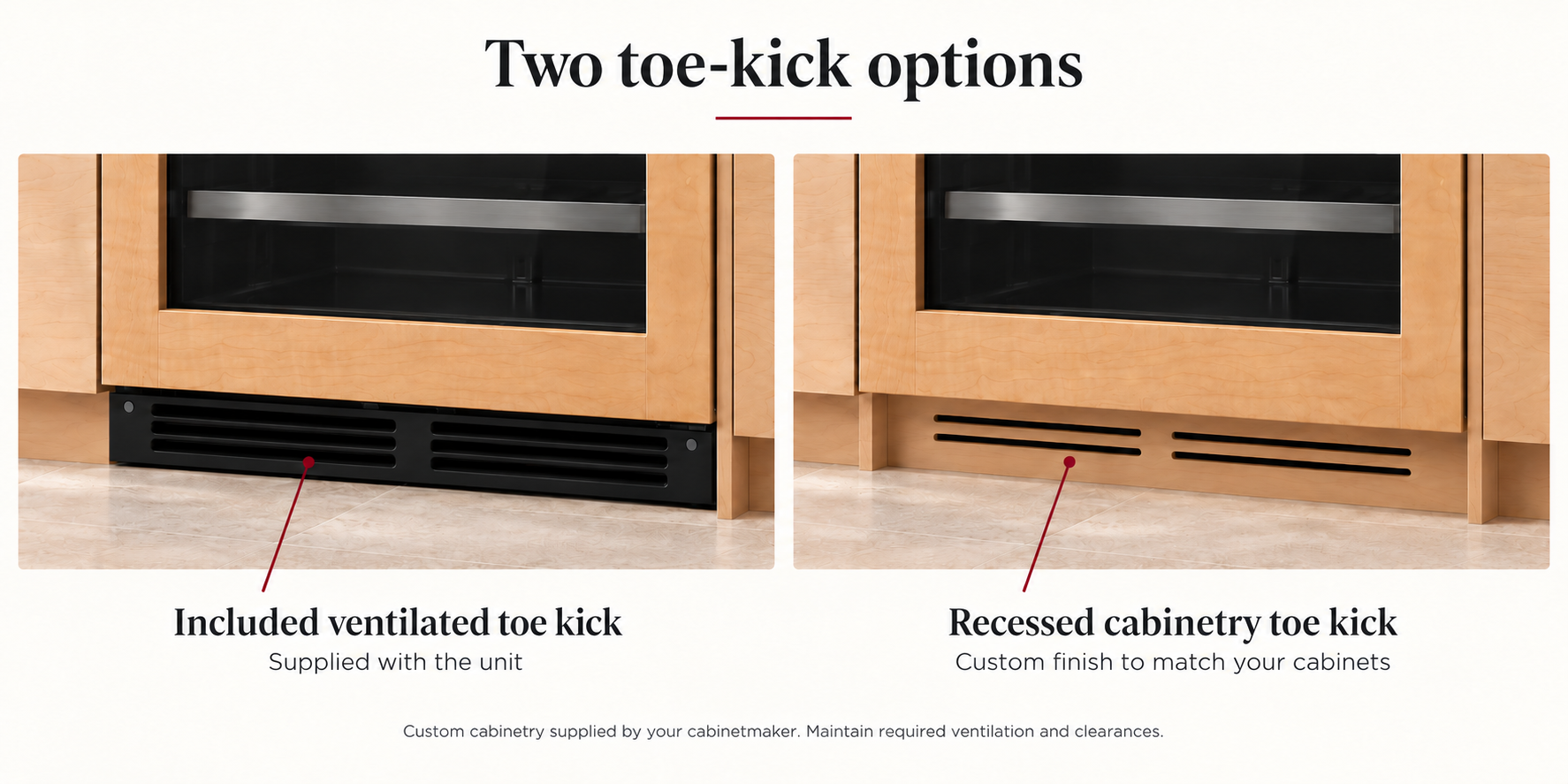

Two Toe-kick Options
Use the included ventilated toe kick or a recessed custom cabinetry toe kick. Custom cabinetry is supplied by your cabinetmaker.
Refrigeration Only
CSA Certified • Commercial Grade
Indoor • Outdoor • ADA Undercounter
Commercial Grade Quality
XO Refrigeration • Built for Real-World Demands
XO Refrigeration delivers a complete line of refrigerators, beverage centers, wine storage, ice machines, and undercounter refrigeration designed for today’s homes, outdoor living, and light commercial spaces. All XO refrigeration products are certified by CSA testing labs to Commercial Grade standards, ensuring durability and performance you can trust. From sleek beverage coolers and ADA-compliant undercounter units to outdoor-rated refrigeration and luxury wine storage, XO combines modern design with everyday functionality, living up to our promise: Good Design is Something Everyone Can Afford.
CSA Certified • Commercial Grade
Undercounter sizes incl. ADA height
Outdoor-rated options available
Beverage, wine, ice & more
CSA • Commercial Grade
Specifications & Files
Appearance
- FinishPanel Ready & Glass
- Control TypeIntuitive Touch Digital Controls
- Toe Kick ColorBlack
- Interior LightingTri-Color LED Interior Illumination
- Shelf MaterialGlass
- ControlsElectronic Touch
- Control LightingBacklit LCD
- Filter TypeActivated carbon air filter
- Light ColorsMidnight Blue, Theater White, Honey Amber
- Light TypeTri-Color LED Interior Illumination
- Lighting FeaturesThree lighting modes
- Door FeaturesPanel Ready - UV Blocking Low-E Glass
- Door SwingReversible
- Interior FinishMolded ABS
- Number of Shelves2
- Number of Temperature Zones1
- Open Door AlarmYes
- Sabbath ModeYes
Capacity
- Can Storage Capacity118 (12oz)
- Cubic Foot Capacity3.85 cu ft
- Storage Features12 Position Full Extension, Fully Loaded
Performance Specifications
- Sound Level37 dBA
- Ambient Temperature60 to 90 degrees F
- Maximum Temperature Zone 150 degrees F
- Minimum Temperature Zone 134 degrees F
Weights & Dimensions
- Product Weight125
- Product Dimesions (DxWxH)21 5/8" x 23 7/8" x 32 1/2 to 34 1/8"
- Height32 1/2 to 34 1/8
- Width23 7/16"
- Depth21 5/8"
- Depth Excluding Handles22 7/16" includes 3/4" panel
- Depth Less Door19 15/16"
- Depth With Door Open 90 Degrees44 11/16"
- Height to Top of Door Hinge32 1/2 to 34 1/8
Installation
- Install TypeFully Integrated Undercounter
- LocationIndoor
- Vent LocationBottom Front
- Cut-out Depth24"
- Cut-Out Height32 1/2" to 34 1/4"
- Cut-Out Width24"
- Cooling Unit TypeAir Cooled Compressor
- RefrigerantR600a
- Defrost TypeAutomatic Defrost
- Power Cord Included6' with Flat Plug
- Required Plug Type5-15P Plug Type
- Leveling LegsIncluded
Shipping
- Freight Class92.5
- Shipping Weight125
- Carton Height37"
- Carton Width27"
- Carton Depth29"
- Shipping MethodLTL
