XOU2470WTZGO $3,499
Tall Triple Zone Wine Cooler
Showcase up to 70 bottles in the XO triple-zone wine column. Designed for integration into cabinetry from 70 to 84 inches tall, the panel-ready glass door provides a coordinated built-in appearance. This model is for built-in installation only and cannot be used freestanding.
Commercial & residential use
Features at a Glance
- Ready To Serve At 41° To 64°F.
- Panel Ready Built-in Design Accommodates Cabinetry up to 84" Tall
- Wine Racks Partially Extend While Loaded
- Intuitive Digital Controls Easily Adjust
- Temperature, Lights, and Operating Mode
- Field Reversible Door
- Articulated Hinges integrate seamlessly with existing cabinetry
- Additional Bottom Storage (11-750ml Bottles)
- Designed for residential or commercial settings
A Closer Look

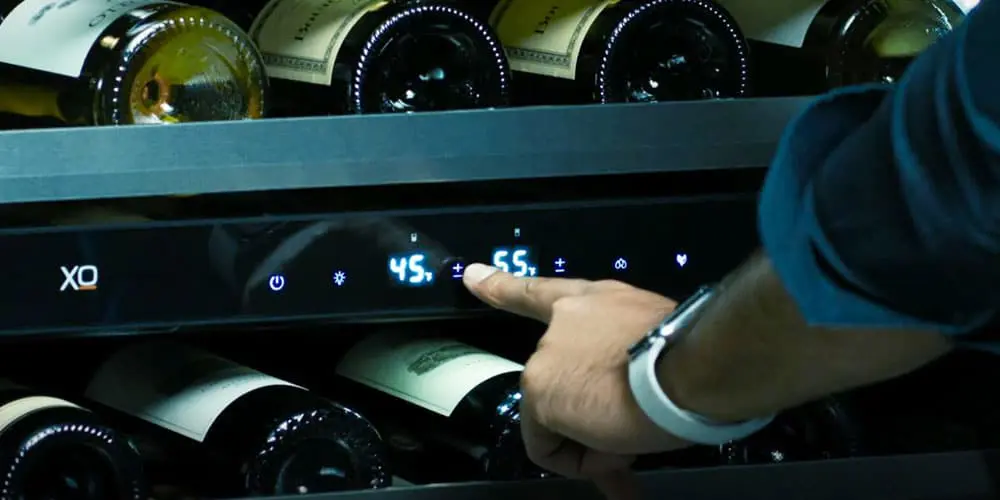

3 Zones
Triple Zoned so you can get just the right temperature for storing and serving.

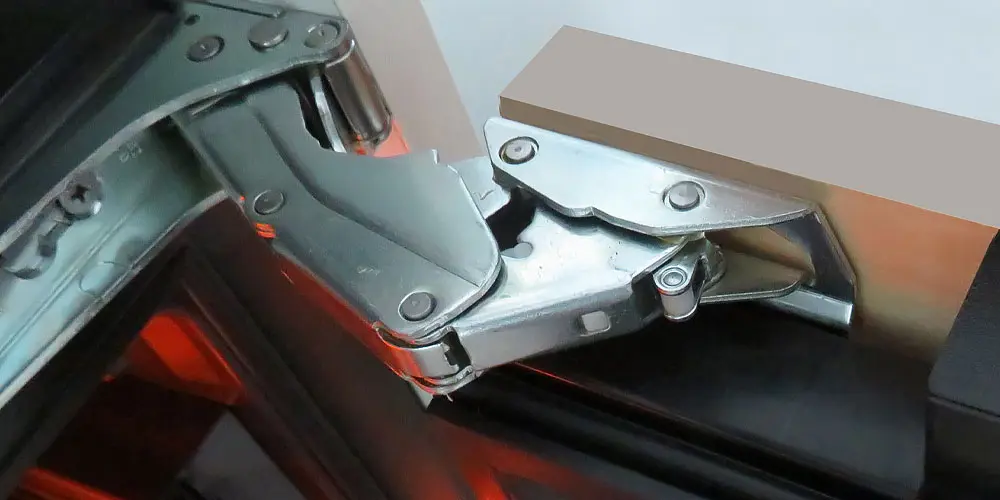

Articulating Hinge
ideally designed for seamless integration into your existing cabintry up to 84" tall

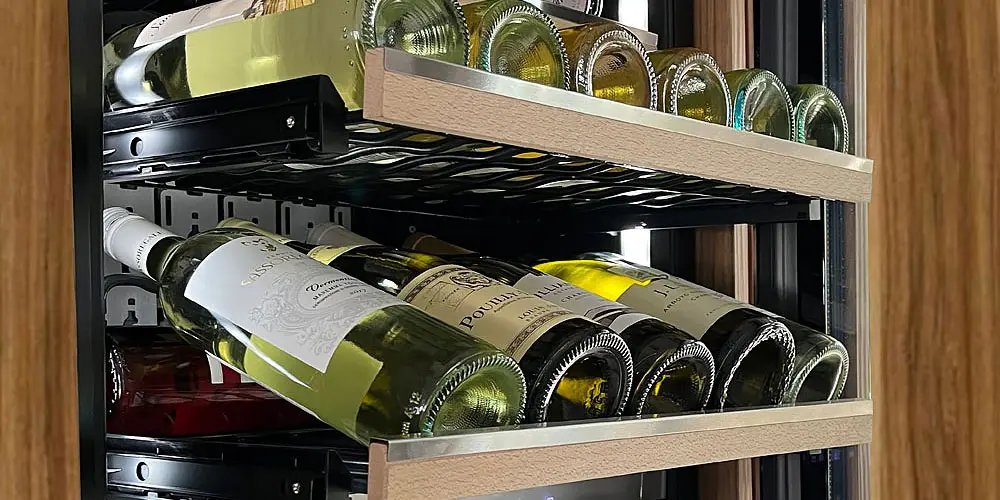

Display Shelves
Elegant designer piece allows you to showcase your favorite vintages.

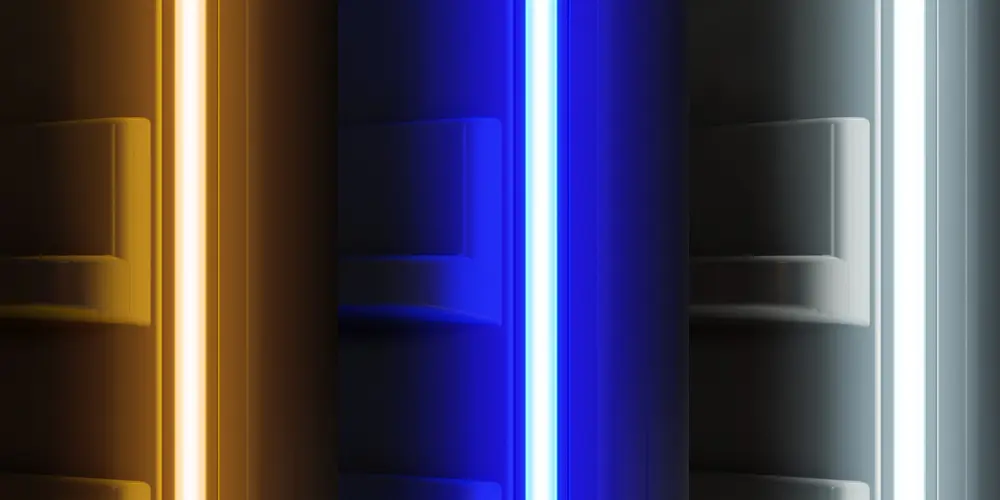

Elegant Tri-color Lighting
Cool running LEDS are change with the push of a button from theater white to midnight blue or honey amber.

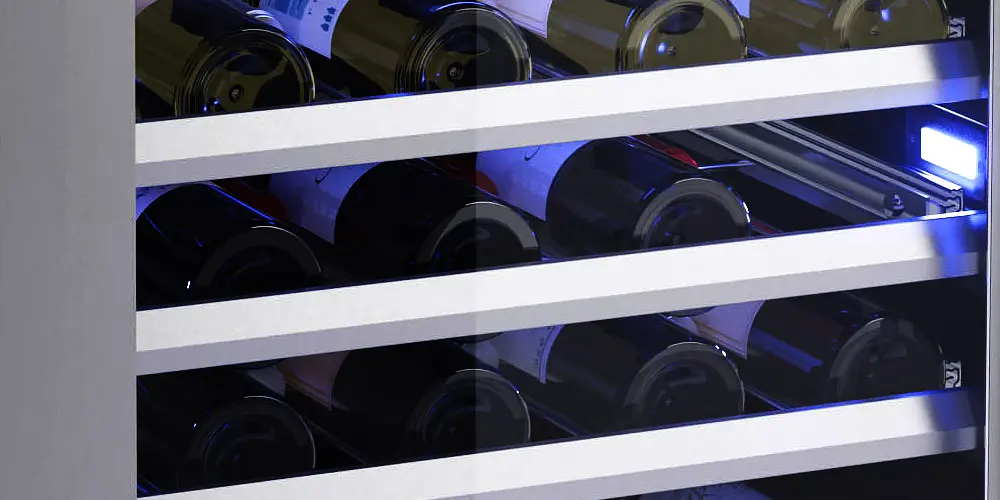

Low-e Glass With Uv Blocker
On all glass door units, double pane, low-e glass coated to block harmful ultraviolet light is standard for energy efficient operation and protection from damaging light.
Refrigeration Only
CSA Certified • Commercial Grade
Indoor • Outdoor • ADA Undercounter
Commercial Grade Quality
XO Refrigeration • Built for Real-World Demands
XO Refrigeration delivers a complete line of refrigerators, beverage centers, wine storage, ice machines, and undercounter refrigeration designed for today’s homes, outdoor living, and light commercial spaces. All XO refrigeration products are certified by CSA testing labs to Commercial Grade standards, ensuring durability and performance you can trust. From sleek beverage coolers and ADA-compliant undercounter units to outdoor-rated refrigeration and luxury wine storage, XO combines modern design with everyday functionality, living up to our promise: Good Design is Something Everyone Can Afford.
CSA Certified • Commercial Grade
Undercounter sizes incl. ADA height
Outdoor-rated options available
Beverage, wine, ice & more
CSA • Commercial Grade
Specifications & Files
Appearance
- FinishPanel Ready & Glass
- HandleNone
- Control TypeIntuitive Touch Digital Controls
- Toe Kick ColorN/A
- Interior LightingLED Interior Illumination
- Wine Rack MaterialSteel
- ControlsElectronic Touch
- Control LightingBacklit LCD
- Filter TypeActivated carbon air filter
- Light ColorsMidnight Blue, Theater White, Honey Amber
- Light TypeTri-Color LED Interior Illumination
- Lighting FeaturesThree lighting modes
- Door FeaturesPanel Ready - UV Blocking Low-E Glass
- Door SwingField Reversible
- Interior FinishMolded ABS
- Number of Temperature Zones3
- Number of Wine Racks11
- Open Door AlarmYes
- Sabbath ModeYes
Capacity
- Bottle Storage Capacity70
- Cubic Foot Capacity7.6 cu ft
- Storage FeaturesVibration Dampened Racks, Partial Extension, Fully Loaded
Performance Specifications
- Sound Level39
- Ambient Temperature60 to 90 degrees F
- Maximum Temperature Zone 164 degrees F
- Maximum Temperature Zone 250 degrees F
- Minimum Temperature Zone 141 degrees F
- Minimum Temperature Zone 241 degrees F
Weights & Dimensions
- Product Weight211 lbs
- Product Dimesions (DxWxH)21 1/2" x 21 7/8" x 68 11/16"
- Height68 11/16"
- Width21 7/8"
- Depth21 1/2"
- Depth Excluding Handles22 1/4"
- Depth Less Door19 11/16"
- Depth With Door Open 90 Degrees44"
- Side Clearance with Door Open 90 Degrees1 3/4"
- Height to Top of Door Hinge68 11/16"
Installation
- Install TypeBuilt-In
- LocationIndoor
- Vent LocationBottom Entry - Top Exhaust
- Cut-out Depth22 7/8"
- Cut-Out Height69 3/8"
- Cut-Out Width22
- Cooling Unit TypeAir Cooled Compressor
- RefrigerantR600a
- Defrost TypeAutomatic Defrost
- Power Cord Included6' with Flat Plug
- Required Plug Type5-15P Plug Type
- Leveling LegsIncluded
Shipping
- Freight Class92.5
- Shipping Weight211 lbs
- Shipping MethodLTL
